BTA16-800B TRIACs TO-220 BTA16-800B TRIACs TO-220 BTA16-800B TRIACs TO-220

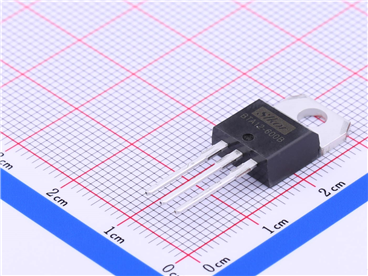

BTA16-800B TRIACs TO-220
Slkor offers alternative replacement - BTA16-800B - for STMicroelectronics BTA16-800BWRG 800V, 16A TRIACs
VDRM(V): 800V
IT(RMS)(A): 16A
IGT(mA)/Max: 100mA
VGT(V) : 1.5V
Package: TO-220

Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Slkor alternative equivalents to STMicroelectronics.

STMicroelectronics Slkor Replacements
Part Number Part Number Product Category Package
BTA06-800BWRG BTA06-800B SCR TO-220
BTA08-800BWRG BTA08-800B SCR TO-220
BTA12-600BWRG BTA12-600B SCR TO-220
BTA16-800BWRG BTA16-800B SCR TO-220
BTA24-800BWRG BTA24-800B SCR TO-220
BTA26-800BWRG BTA26-800B SCR TO-3P
BTA41-800BRG BTA41-800B SCR TO-3P
BTA41-1200BRG BTA41-1200B SCR TO-3P
ZMM5V1 ZMM5V1 Zener Diode LL-34
TIP122 TIP122 Darlington Array TO-220
TIP127 TIP127 Darlington Array TO-220
ULN2001D1013TR ULN2001D Darlington Array SOP-16
L4949 SL4949 Linear Regulator SOP-8
LM317 LM317T-DGZ Linear Regulator TO-220
LMV321 LMV321ILT Op-amp SOT-23-5
M24C02-WMN6TP SL24C02D EEPROM SOP-8
MMBTA42 MMBTA42 Transistor SOT-23
MMBT4401 MMBT4401 Transistor SOT-23
MMBT5551 MMBT5551 Transistor SOT-23
MMBT5401 MMBT5401 Transistor SOT-23
MMBT3904 MMBT3904 Transistor SOT-23
MMBT3906 MMBT3906 Transistor SOT-23
MMBT2222A MMBT2222A Transistor SOT-23
D44H11 SL44H11 Transistor TO-220-3L



Description

Available either in through-hole or surface-mount packages, the BTA/BTB16 - 800 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers. The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.


Features

● High voltage capability

● Least sensitive gate for highest noise immunity

● High junction operating temperature capability (Tj(max) = 150 °C)

● High minimum IGT for guaranteed immunity to gate noise

● Planar passivated for voltage ruggedness and reliability

● Triggering in all four quadrants

● Internally insulated package

● Isolated mounting base with 2500 V (RMS) isolation


Applications

● Washing machine, vacuums, massager, solid state relay, AC, Motor speed regulation

● Applications subject to high temperature (Tj(max) = 150 °C)

● Compressor starting control circuits

● General purpose motor controls

● General purpose switching


Quick reference data

Symbol Parameter Conditions Max Unit
VDRM Repetitive peak off-state voltages 800 V
IT (RMS) RMS on-state current (full sine wave) Tc=110℃ 16 A
ITSM Surge On-State Current f=50/60Hz, tp=16.7ms/20ms 160 / 168 A
