BCP53-16 PNP Bipolar Transistor SOT-223 BCP53-16 PNP Bipolar Transistor SOT-223 BCP53-16 PNP Bipolar Transistor SOT-223

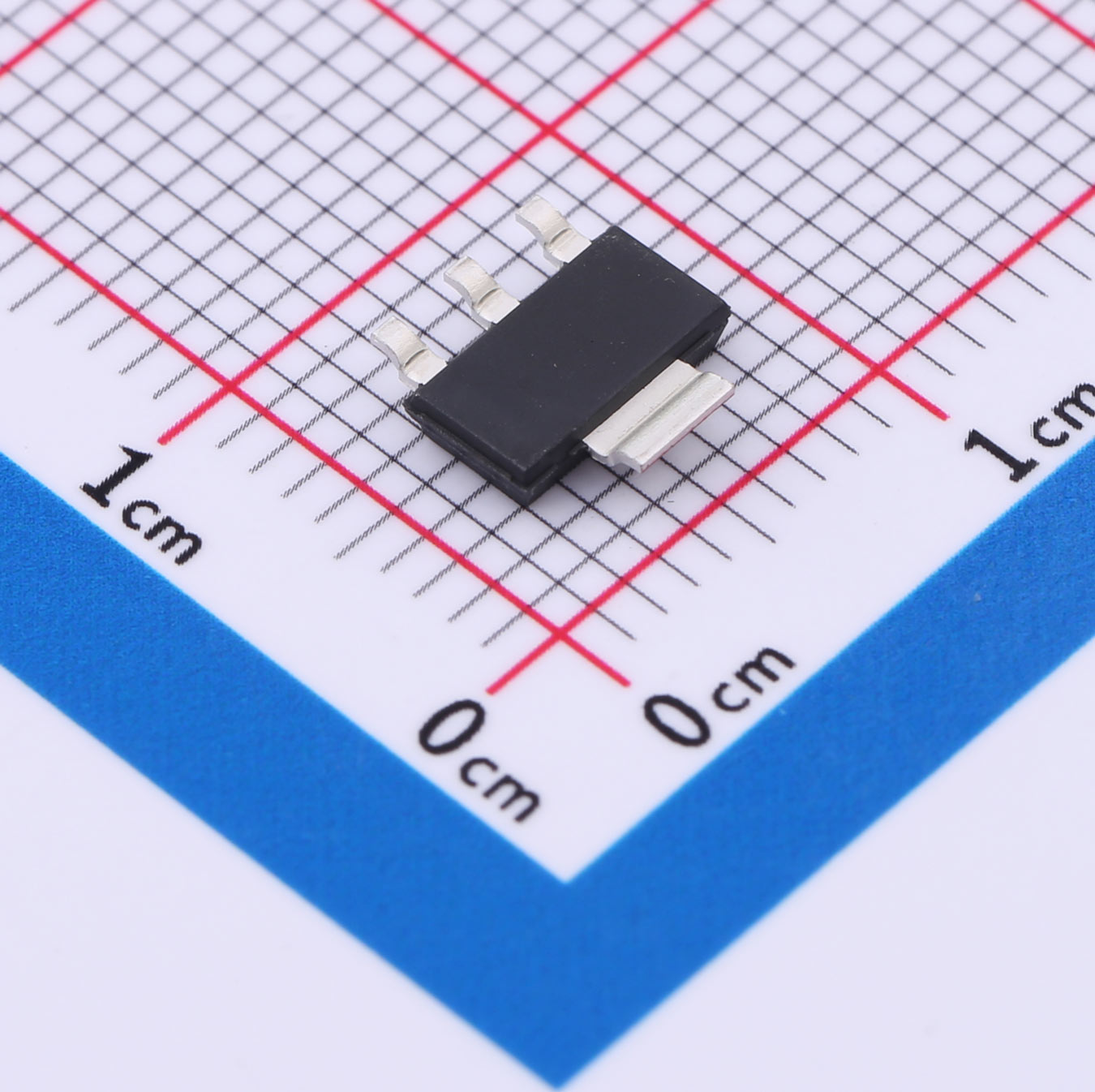

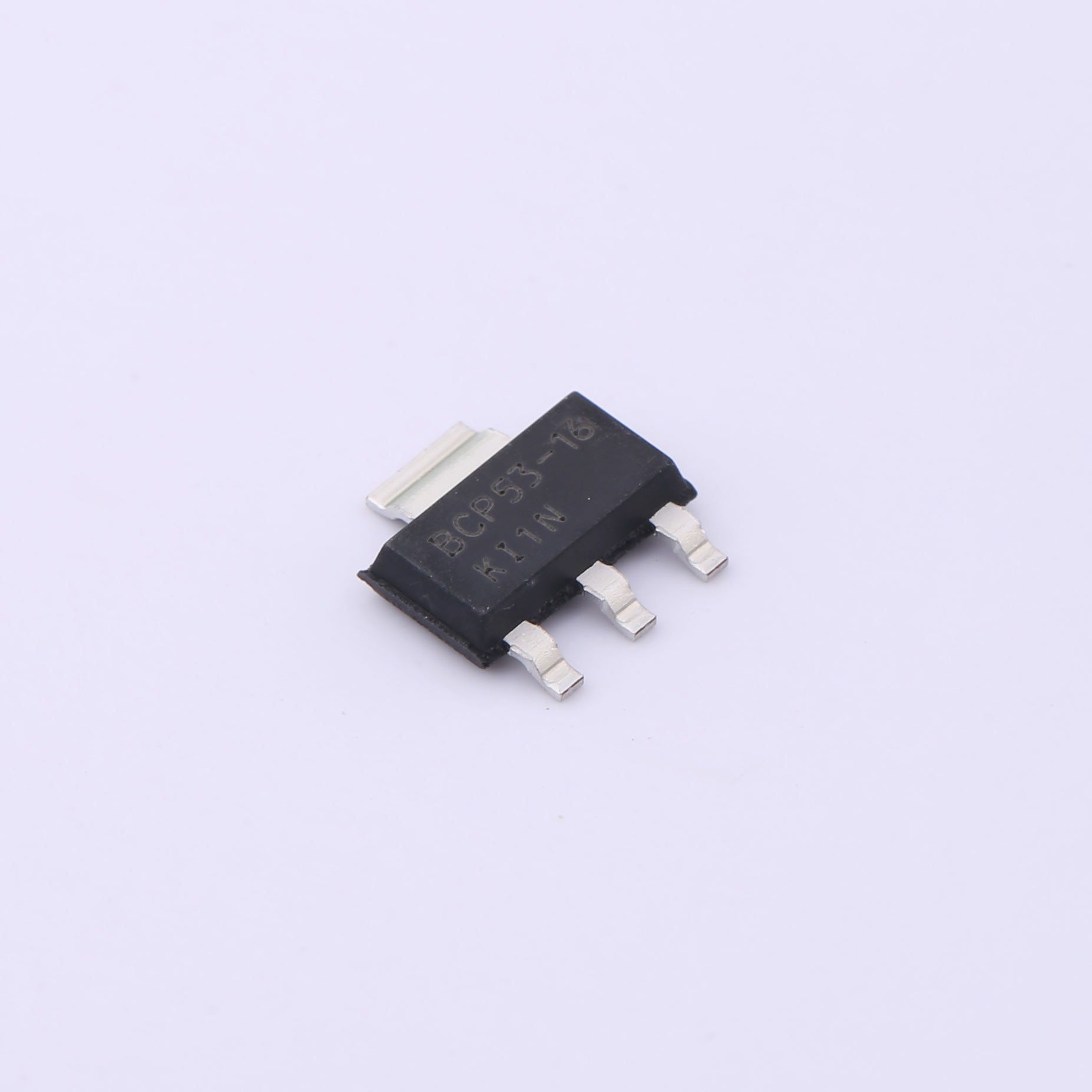

BCP53-16 PNP Bipolar Transistor SOT-223

Type:PNP

Vceo: -80V

Ic: -1A

Pd: 1.5W

VCE(sat)@Ic,Ib: -0.5V@-500mA,-50mA

fT: 100MHz


Product Details


Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description:

The BCP53-16 is a versatile PNP bipolar junction transistor renowned for its robustness and efficient performance in various electronic applications. With a maximum collector-emitter voltage (Vceo) of -80V and a collector current (Ic) rating of -1A, it offers reliable operation in circuits requiring substantial current handling capabilities. The transistor's power dissipation (Pd) of 1.5W and low collector-emitter saturation voltage (VCE(sat)) of -0.5V @ -500mA, -50mA ensure efficient switching and amplification.

Features:
● For AF driver and output stages
● High collector current
● Low collector-emitter saturation voltage
● Complementary types: BCP54...BCP56 (NPN)


Applications:
The BCP53-16 transistor finds application in a wide range of electronic circuits, including:

● Power Supply Regulation: Used in voltage regulators and power management circuits where high voltage and current capacity are necessary.
● Audio Amplification: Provides efficient signal amplification in audio amplifiers and preamplifiers due to its high current handling and low saturation voltage.
● Switching Circuits: Ideal for switching applications in various electronic devices, ensuring reliable performance and low power dissipation.
● Automotive Electronics: Suitable for automotive applications such as electronic ignition systems, motor control, and lighting circuits due to its robust design and performance under varying temperatures.
