BCP56-16 NPN Bipolar Transistor SOT-223 BCP56-16 NPN Bipolar Transistor SOT-223 BCP56-16 NPN Bipolar Transistor SOT-223

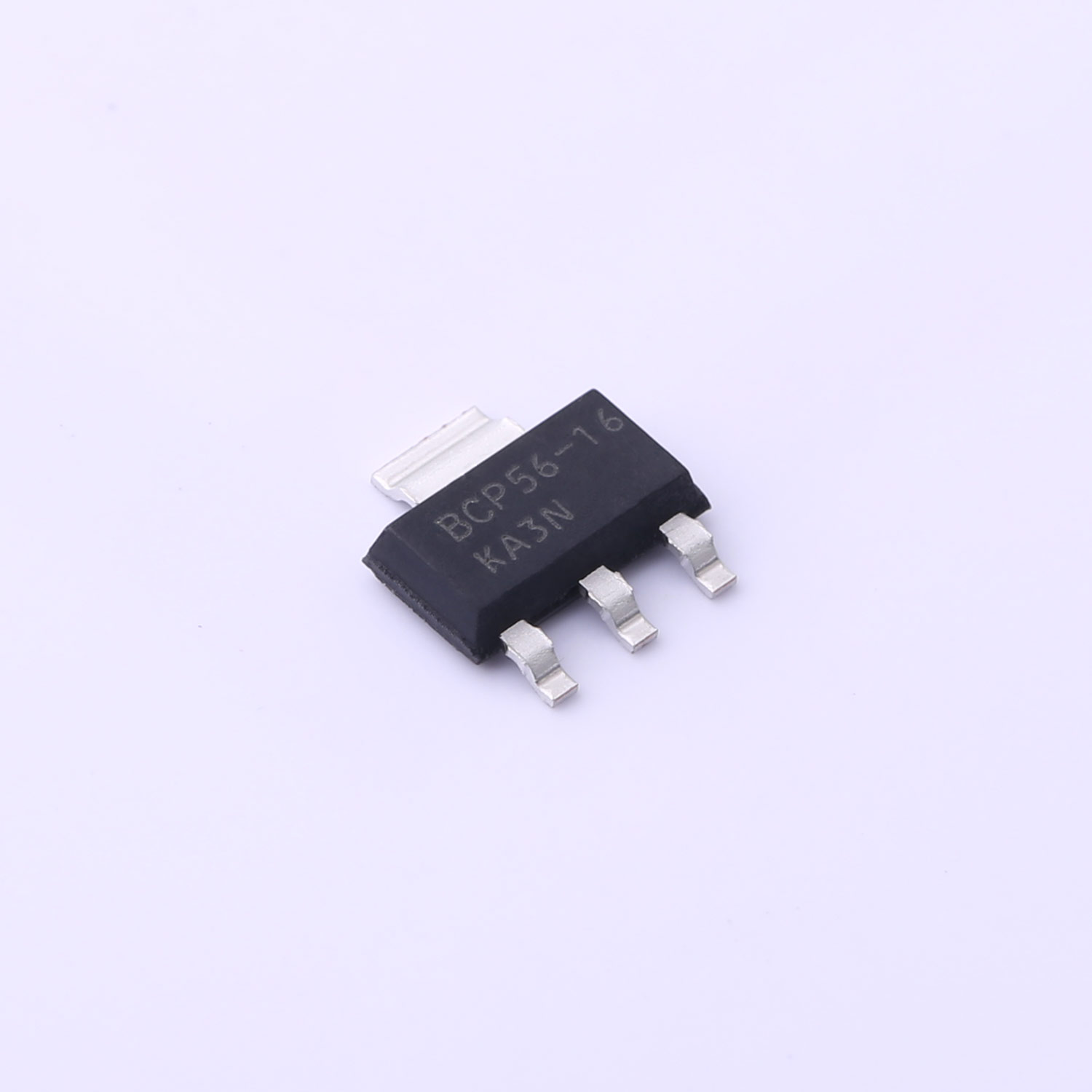

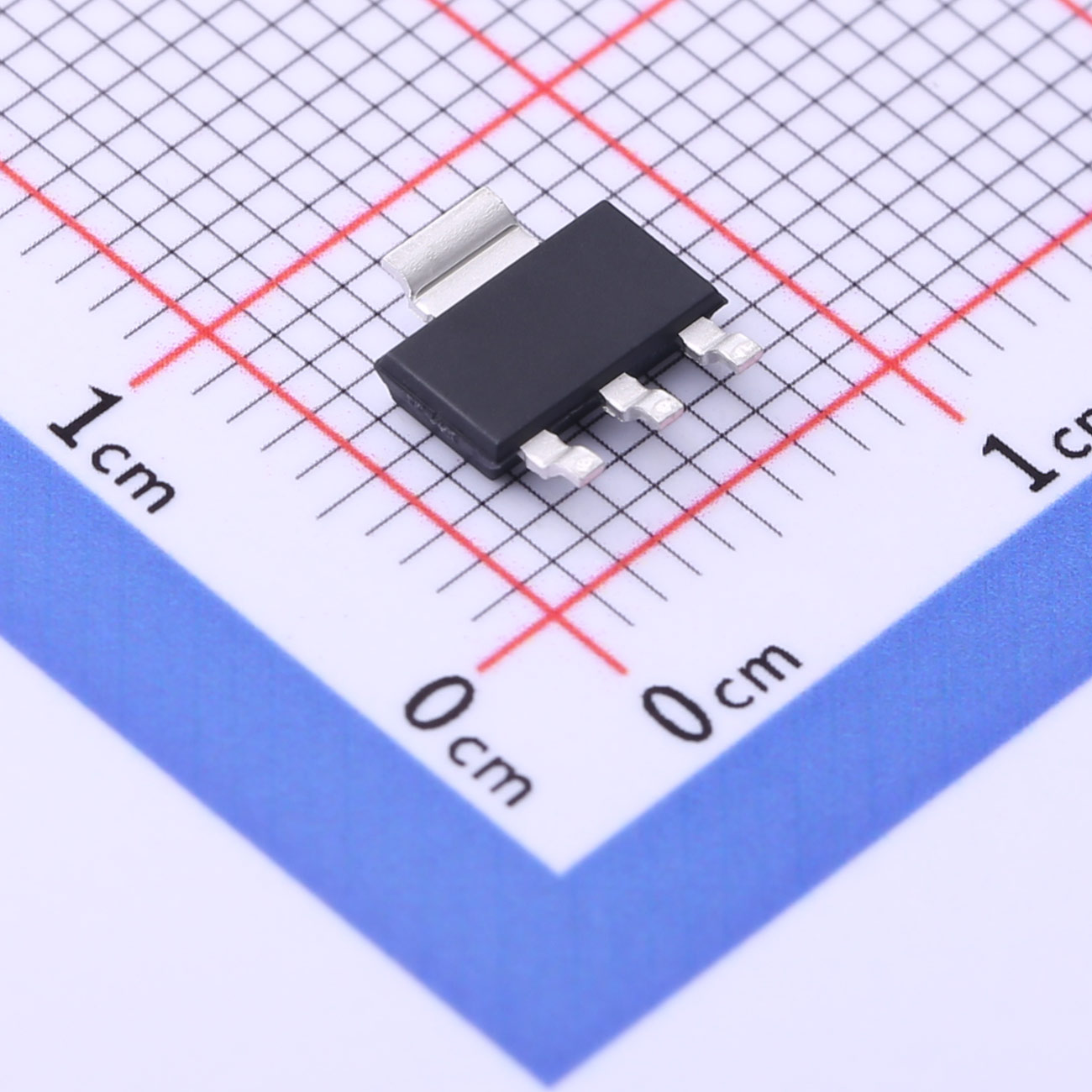

BCP56-16 NPN Bipolar Transistor SOT-223

Type:NPN

Vceo: 80V

Ic: 1A

Pd: 1.5W

VCE(sat)@Ic,Ib: 0.5V@500mA,50mA

fT: 100MHz


Product Details

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.


Description:

The BCP56-16 is a high-performance NPN Bipolar Junction Transistor (BJT) designed for applications requiring robust switching and amplification capabilities. It features a high collector-emitter voltage rating (Vceo) of 80V and a maximum collector current (Ic) of 1A. Packaged in a compact SOT-223 surface-mount package, this transistor offers excellent power dissipation and thermal performance for demanding circuit designs.

Features:
● For AF driver and output stages
● High collector current
● Low collector-emitter saturation voltage
● Complementary types: BCP51...BCP53 (PNP)

Applications:
The BCP56-16 NPN transistor is suitable for a variety of applications including:
● Switching Circuits: Efficient switching operations in power supplies, motor controls, and other medium-power switching applications.
● Voltage Regulation: Used in voltage regulators and DC-DC converters due to its high voltage rating and current handling capability.
● Power Management: Ideal for power management circuits in battery-powered devices and portable electronics.
● Audio Amplification: Used in audio amplifiers and speaker driver circuits due to its robust performance and high current handling capacity.
● Industrial Automation: Suitable for control systems and interface circuits where reliable switching and amplification are essential.
