LM2575S-5.0 1A 3A Miniconverter Switching Regulators LM2575S-5.0 1A 3A Miniconverter Switching Regulators LM2575S-5.0 1A 3A Miniconverter Switching Regulators

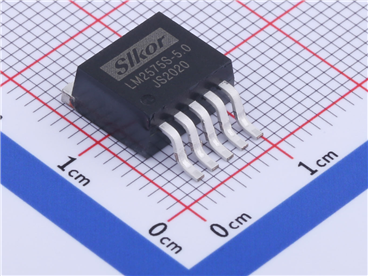

LM2575S-5.0 1A 3A Miniconverter Switching Regulators
VIN(V):45V
VOUT(V):5V
IOUT(mA):7.5mA
fo(kHz):52KHz
Package:TO-263-5

Product Details

Description

●The LM2575/6 series switching regulators are monolithic integrated circuits designed for use in "buck" or "buck/boost" regulator applications requiring accurate output voltages over combined variations of line, load and temperature. This unique series greatly simplifies switching power supply design.The LM2575 has a maximum output cumrent of 1A and the LM2576 is rated for 3A.

●The LM2575/6 series miniconverters include a switching regulator and compensation network all within the same package. Just add a choke, catch diode and two capacitors to obtain an efficient DC-to-DC converter. The current limit and thermal shutdown features of the LM2575/6 series fully protect the device against overstress conditions.

●The LM2575/6 series offers an alternative to popular 3 terminal linear regulators by providing higher efficiency with reduced heatsink size.In many applications a heat sink will not be required.


Features

●Pin for pin replacement for National's LM2575/6 series

●DC-to-DC buck or buck/boost converter requiring only 4 support components

●Fixed or adjustable voltages

●Preset output voltages of 3.3V, 5V and 12V

●Wide output voltage range, 1.23V to 35V

●82% typical efficiency 5V out

●Wide input voltage range, 4V to 40V

●Inhibit/enable control pin

●Industrial temperature range

●TO-220 and TO-263 packages


Applications

●Micro controller power supplies

●Medical equipment

●Industrial power supplies

●Instrumentation power supplies
