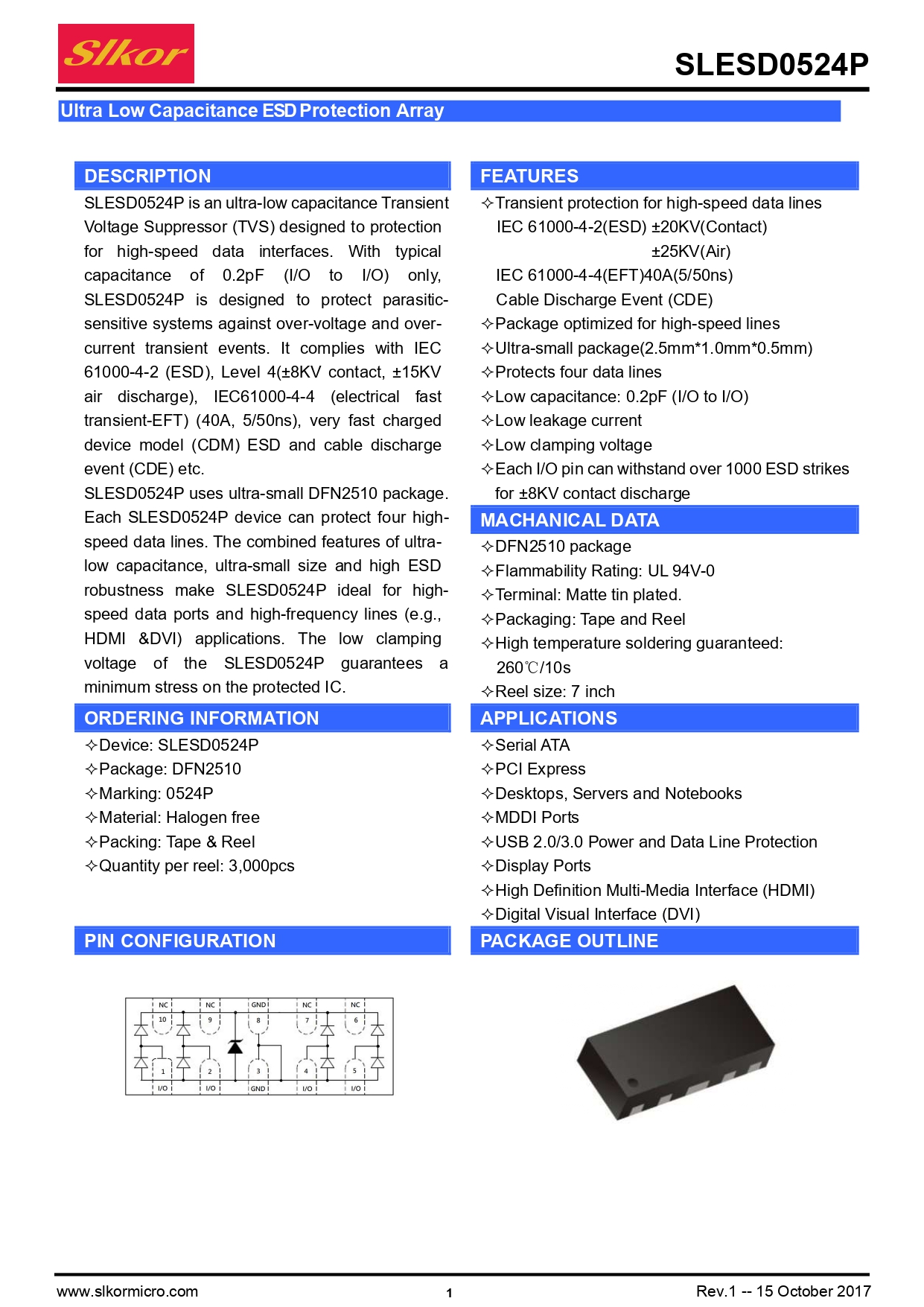

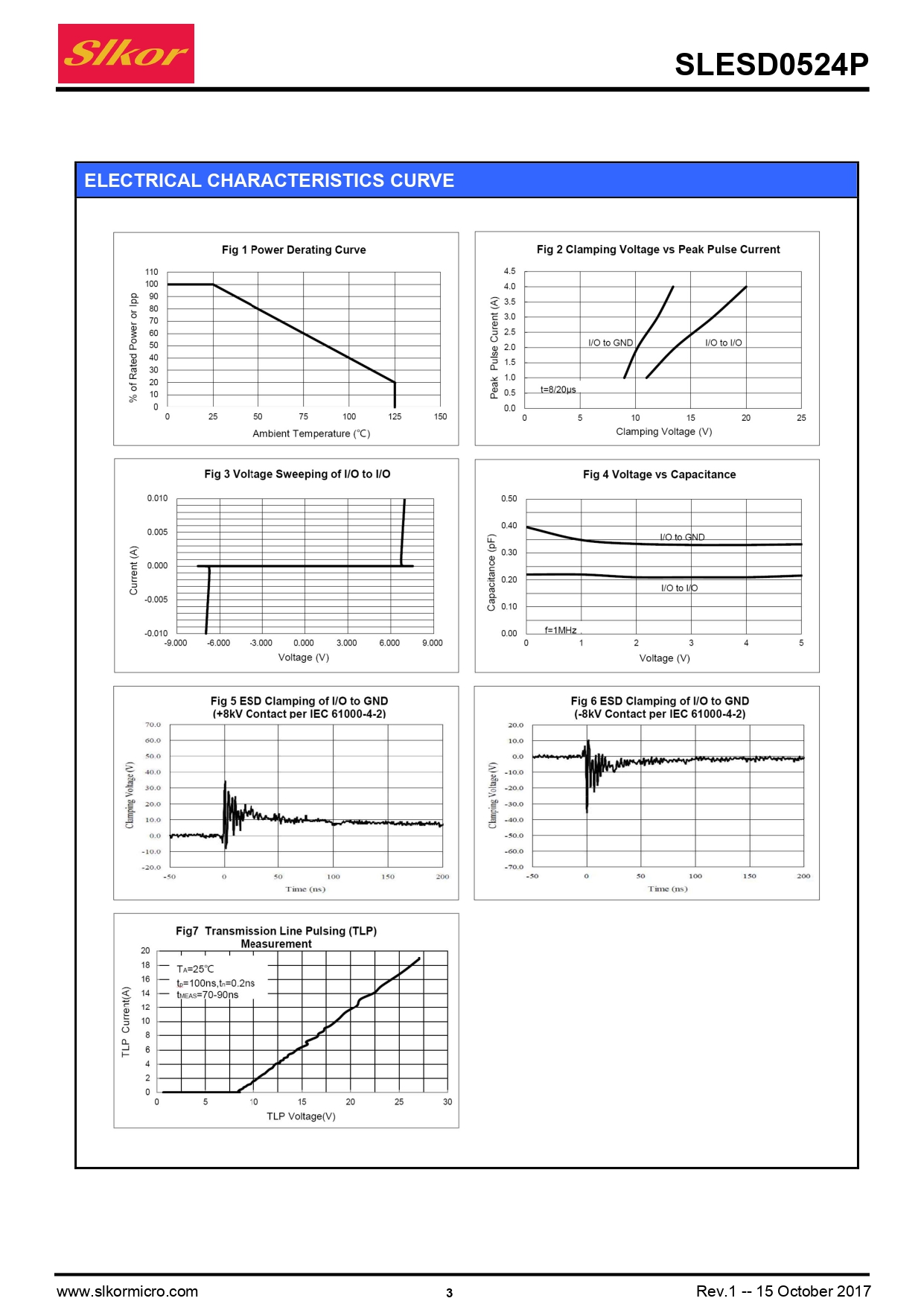

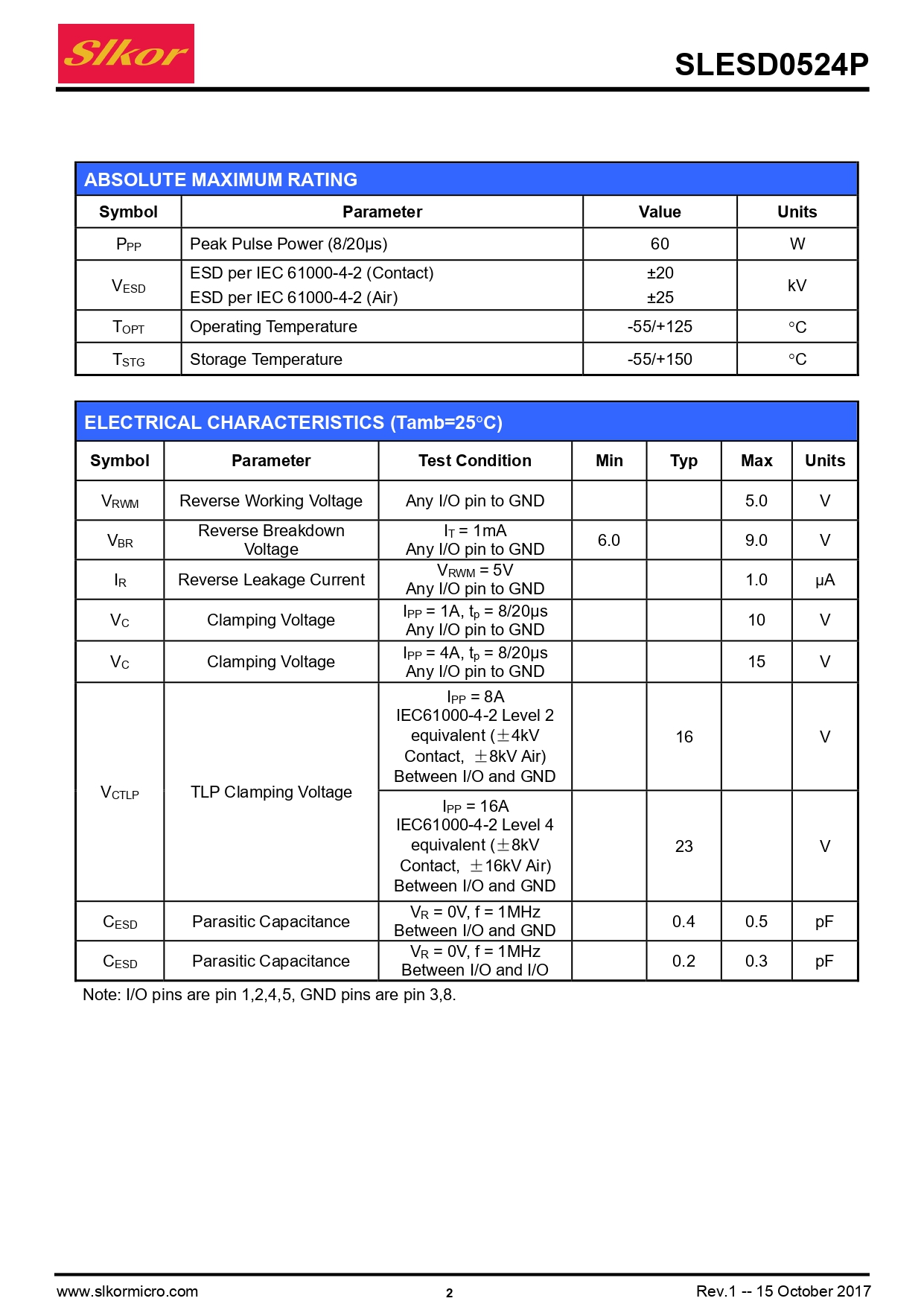

Description

SLESD0524P is an ultra-low capacitance Transient Voltage Suppressor (TVS) designed to protection for high-speed data interfaces. With typical capacitance of 0.2pF (I/O to I/O) only, SLESD0524P is designed to protect parasiticsensitive systems against over-voltage and overcurrent transient events. It complies with IEC 61000-4-2 (ESD), Level 4(±8KV contact, ±15KV air discharge), IEC61000-4-4 (electrical fast transient-EFT) (40A, 5/50ns), very fast charged device model (CDM) ESD and cable discharge event (CDE) etc. SLESD0524P uses ultra-small DFN2510 package. Each SLESD0524P device can protect four highspeed data lines. The combined features of ultralow capacitance, ultra-small size and high ESD robustness make SLESD0524P ideal for highspeed data ports and high-frequency lines (e.g., HDMI &DVI) applications. The low clamping voltage of the SLESD0524P guarantees a minimum stress on the protected IC.

Features

Transient protection for high-speed data lines

IEC 61000-4-2(ESD) ±20KV(Contact) ±25KV(Air)

IEC 61000-4-4(EFT)40A(5/50ns)

Cable Discharge Event (CDE)

Package optimized for high-speed lines

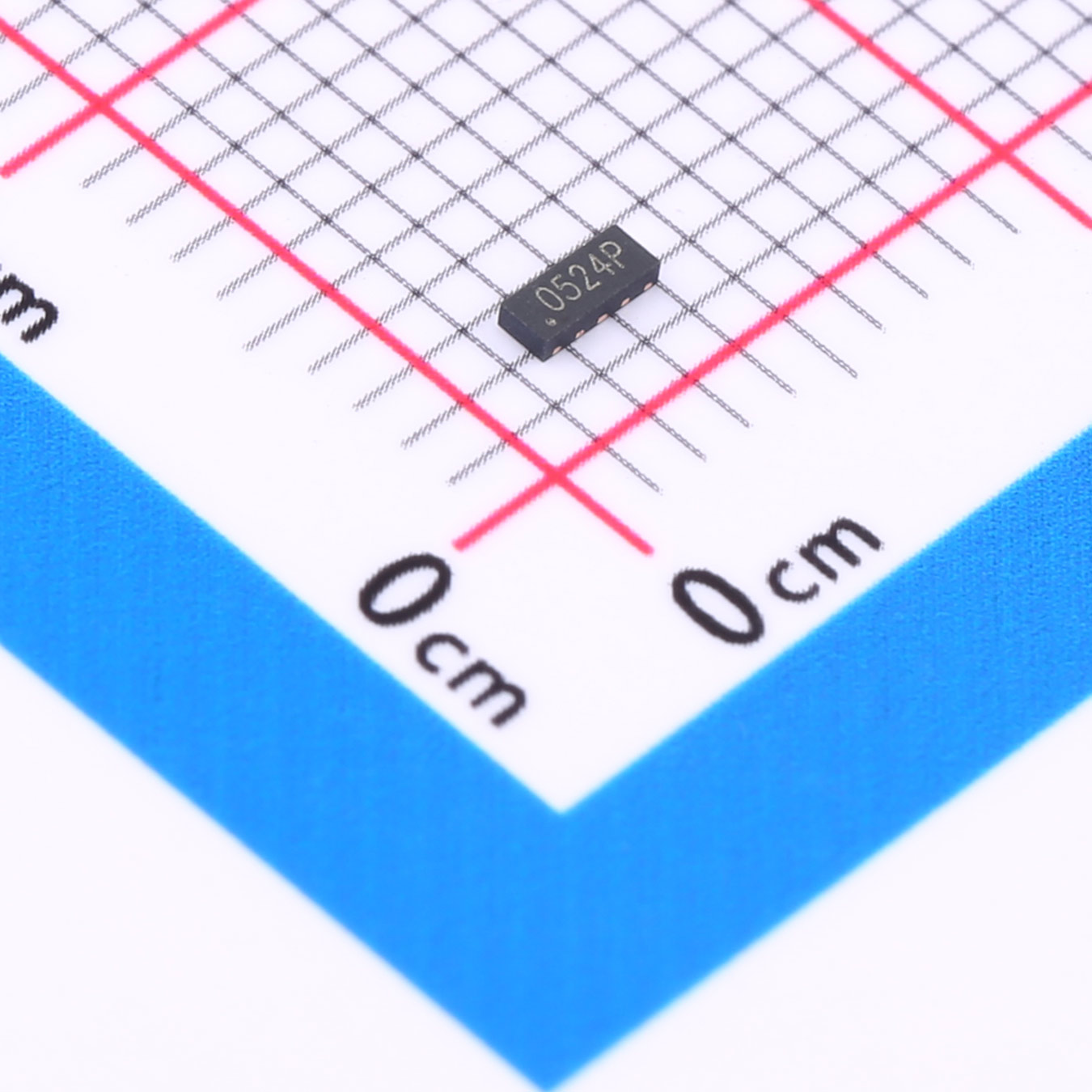

Ultra-small package(2.5mm*1.0mm*0.5mm)

Protects four data lines

Low capacitance: 0.2pF (I/O to I/O)

Low leakage current

Low clamping voltage

Each I/O pin can withstand over 1000 ESD strikes for ±8KV contact discharge

Machanical Data

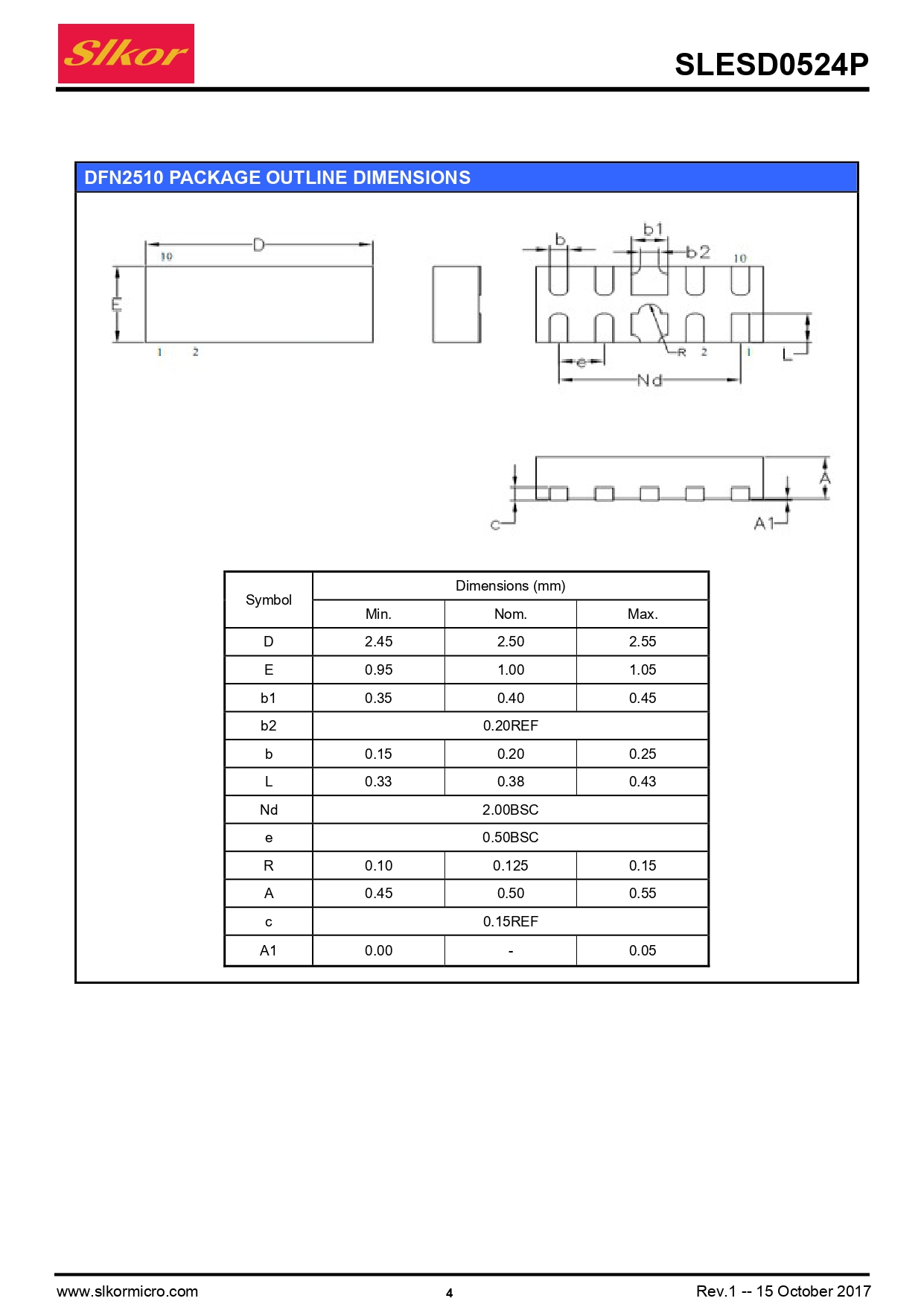

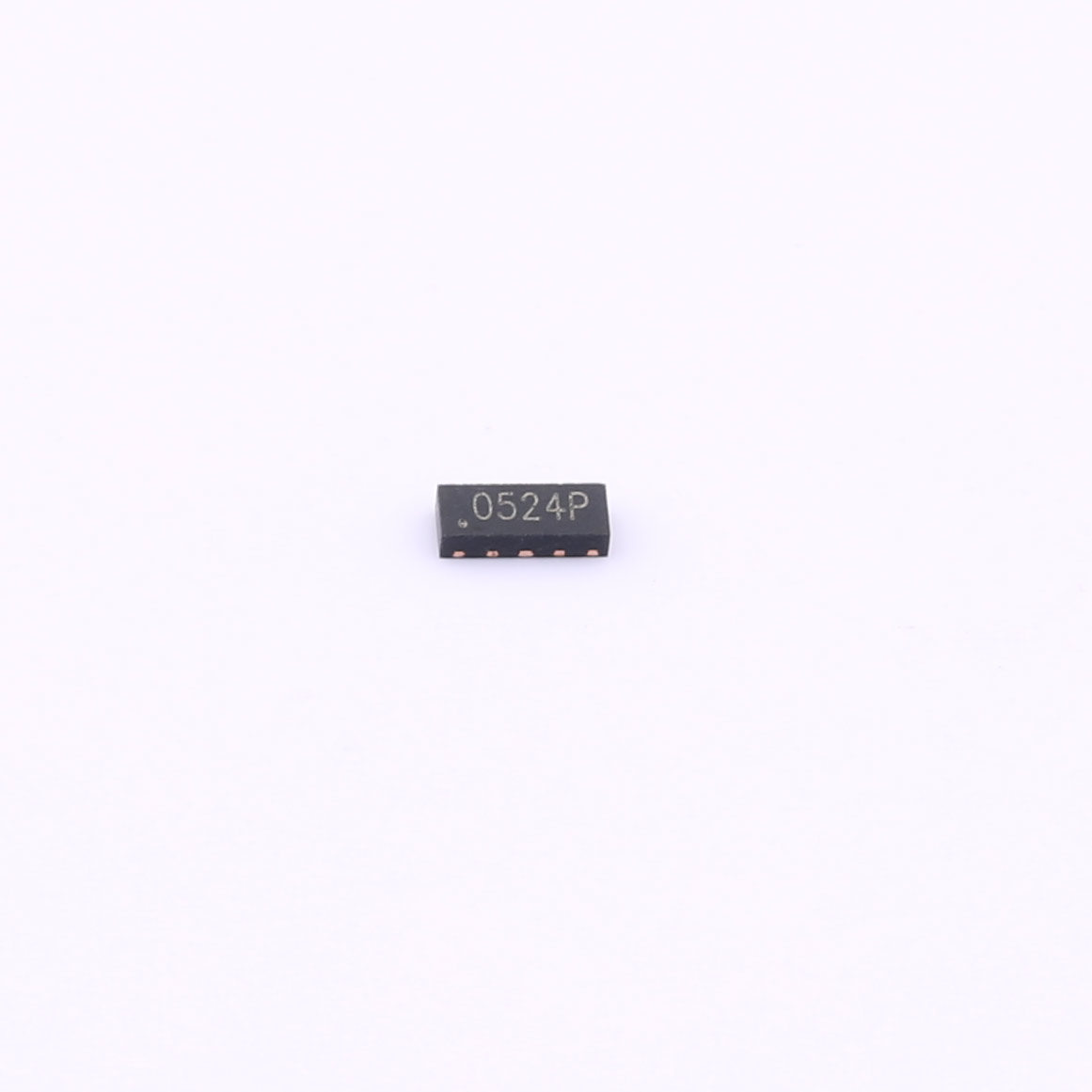

DFN2510 package

Flammability Rating: UL 94V-0

Terminal: Matte tin plated.

Packaging: Tape and Reel

High temperature soldering guaranteed: 260℃/10s

Reel size: 7 inch

Applications

Serial ATA

PCI Express

Desktops, Servers and Notebooks

MDDI Ports

USB 2.0/3.0 Power and Data Line Protection

Display Ports

High Definition Multi-Media Interface (HDMI)

Digital Visual Interface (DVI)
