In today’s digital age, the acceleration of smart consumer electronics and automated industrial equipment has created an ever-growing need for robust protection against electrostatic discharge (ESD), a silent "electronic killer" that continuously threatens the stability of electronic systems. As an innovator in the domestic semiconductor protection component industry, Slkor has recently launched its next-generation ultra-low junction capacitance ESD protection diode—the SM12C series. Developed using an advanced semiconductor process platform, this product is specifically designed to meet the electrostatic protection needs of portable devices, smart terminals, industrial interfaces, and communication modules. With features such as a 12V reverse working voltage, 75pF ultra-low junction capacitance, and a compact SOT-23 package, it sets a new performance benchmark for both consumer and industrial-grade ESD protection components.

Technological Innovation: Multi-Dimensional Performance Breakthroughs Establishing New Protection Standards

The Slkor SM12C series ESD protection diode achieves a perfect balance between ESD protection capabilities and signal integrity through multiple technological innovations. The core parameter design fully considers the dual needs of modern electronic devices for high-speed data transmission and low-power operation:

1. Ultra-Low Junction Capacitance (CJ = 75pF)

   Traditional ESD devices, due to high junction capacitance, often cause signal reflection and distortion, especially in high-speed interfaces such as USB 3.0 and HDMI 2.1, becoming a bottleneck. The SM12C optimizes doping concentration and PN junction structure to reduce junction capacitance to 75pF, more than 30% lower than comparable products. This allows it to be deployed near differential signal lines such as MIPI and LVDS without worrying about signal degradation or eye diagram closure.

2. Wide Voltage Operating Range (VRWM = 12V)

   The product supports a 12V reverse working voltage, covering mainstream consumer electronics (5V/9V/12V) power systems, while providing a minimum breakdown voltage (VBR min) of 13.3V and a clamping voltage (VC) of 19V. This stepped voltage protection design can withstand IEC 61000-4-2 standard ±8kV contact discharge impacts, while preventing false triggering due to voltage fluctuations. It is especially suitable for industrial environments with frequent power fluctuations.

3. Miniaturized Package and Thermal Management Optimization

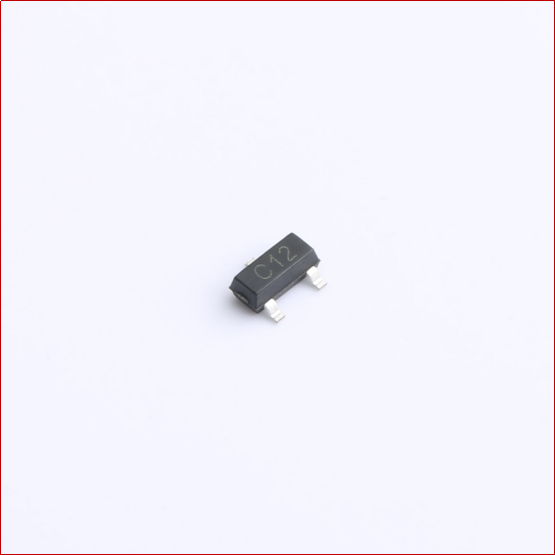

   The SM12C adopts an SOT-23 package (3.0mm × 1.4mm), reducing board area by 60% compared to the SOT-143, enabling high-density PCB layouts. The internal design integrates dual-channel ESD protection units, allowing a single device to protect two data lines simultaneously. With 3D thermal simulation optimizing the metal wiring layer, the device's temperature rise during continuous pulse testing is kept below 15°C, meeting the strict long-term reliability requirements of consumer electronics.

Application Scenarios: Precisely Covering Four Core Areas

Based on its technological features, the SM12C series has successfully entered multiple high-growth markets and become the go-to solution for protecting terminal devices from ESD attacks:

1. Consumer Electronics: The Invisible Guardian of Portable Devices

   In smartphones, tablets, and other mobile devices, open ports such as USB Type-C and headphone jacks are primary entry points for ESD. With its 75pF low capacitance, the SM12C can be deployed near the Type-C connector, ensuring 480Mbps high-speed data transmission while dissipating ESD energy to the ground. Testing shows that, during ±15kV air discharge tests, the device’s response time is less than 1ns, with clamping voltage fluctuation kept below 5%, significantly reducing the risk of SOC chip damage.

2. Smart Home: The Safety Barrier for IoT Nodes

   IoT devices such as smart speakers and security cameras are often deployed in complex electromagnetic environments, with their Zigbee and Wi-Fi modules being particularly vulnerable to human-induced static interference. The SM12C’s 12V operating voltage and 1μA ultra-low leakage current (IR) allow it to stay in the 3.3V/5V power domain without affecting device standby power consumption while providing IEC 61000-4-5 8/20μs surge protection. A case study of a smart lock brand showed that after deploying the SM12C, device failure rates dropped from 2.3% to 0.15%.

3. Industrial Control: The Stable Foundation for Automation Systems

   In industrial equipment such as PLCs and servo drivers, RS-485 and CAN bus interfaces are often subject to ESD events due to operator contact. The SM12C’s 19V clamping voltage design is compatible with 24V industrial bus levels, and its SOT-23 package has been tested across a wide temperature range of -55°C to 150°C, meeting the stringent requirements of GB/T 17626.2. Testing by an automation manufacturer showed that after 1,000 cycles of ±8kV contact discharge, the device maintained a dynamic resistance below 0.5Ω, ensuring zero communication link interruptions.

4. Communication Equipment: Signal Protector for 5G Base Stations

   High-frequency devices such as 5G small base stations and optical modules are extremely sensitive to insertion loss from ESD protection components. The SM12C’s 75pF junction capacitance results in only 0.3dB insertion loss at the 10GHz frequency band, far below the industry threshold of 1dB. Real-world testing by a communications equipment manufacturer showed that after deploying the SM12C, the bit error rate (BER) dropped from 10⁻⁶ to 10⁻⁹, significantly improving base station coverage radius and data throughput.
