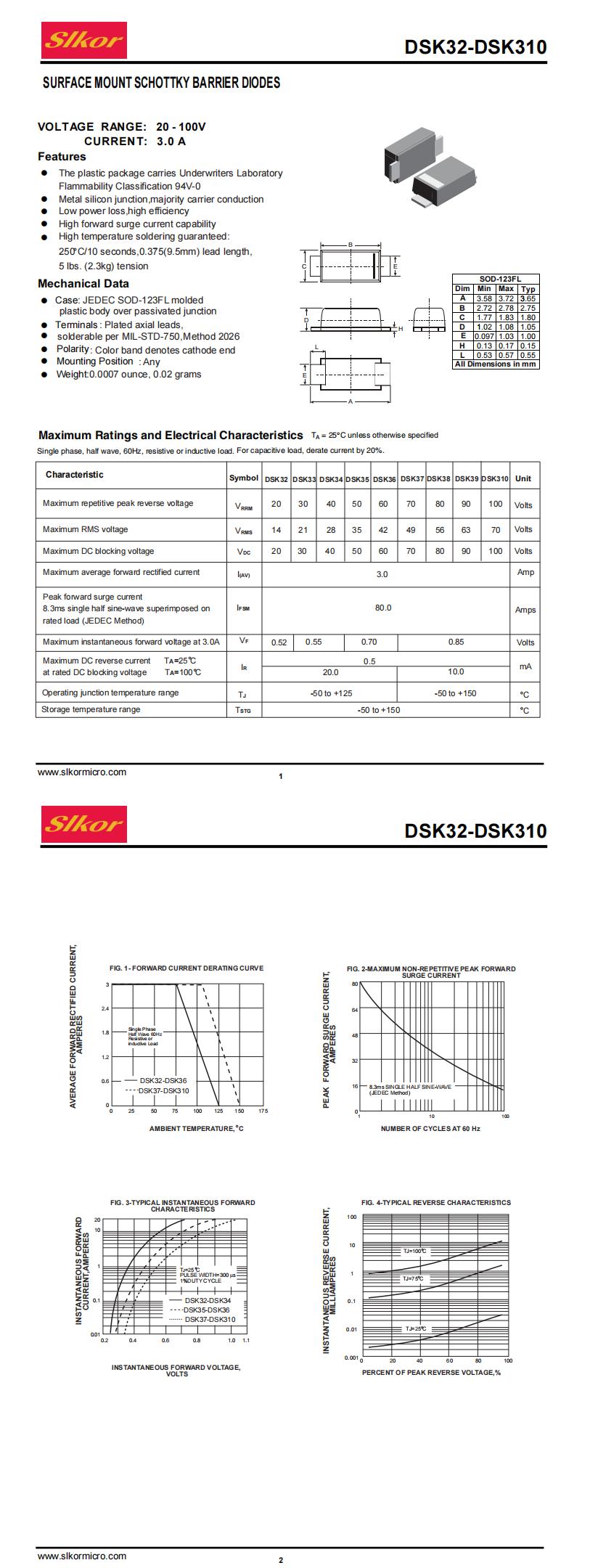

SURFACE MOUNT SCHOTTKY BARRIER DIODES

VOLTAGE RANGE:20-100V

CURRENT:3.0 A

Features

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction, majority carrier conduction

Low power loss, high efficiency

High forward surge current capability

High temperature soldering guaranteed: 250C/10 seconds, 0.375(9.5mm) lead length, 5 Ibs.(2.3kg)tension

Mechanical Data

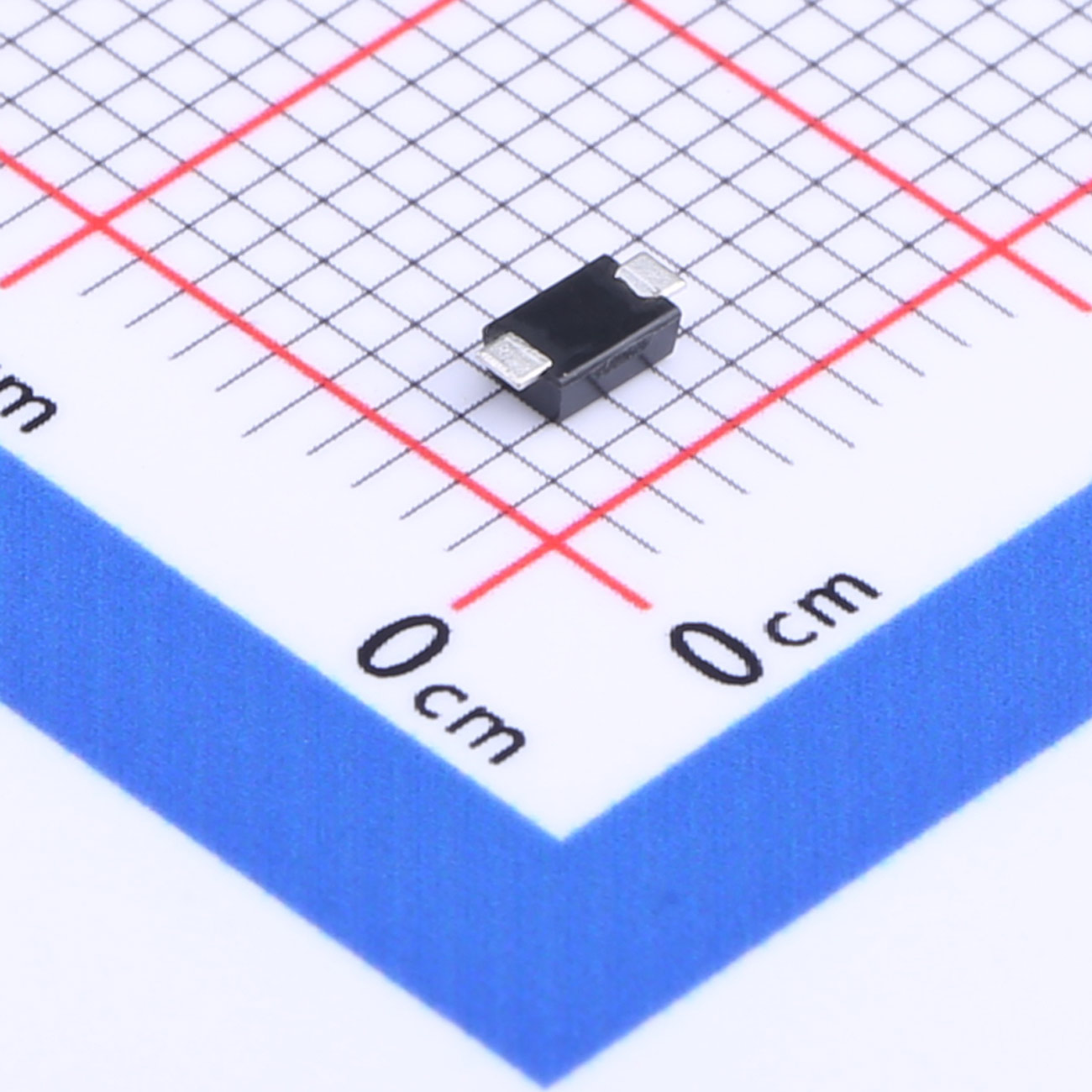

Case: JEDEC SOD-123FL molded plastic body over passivated junction

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

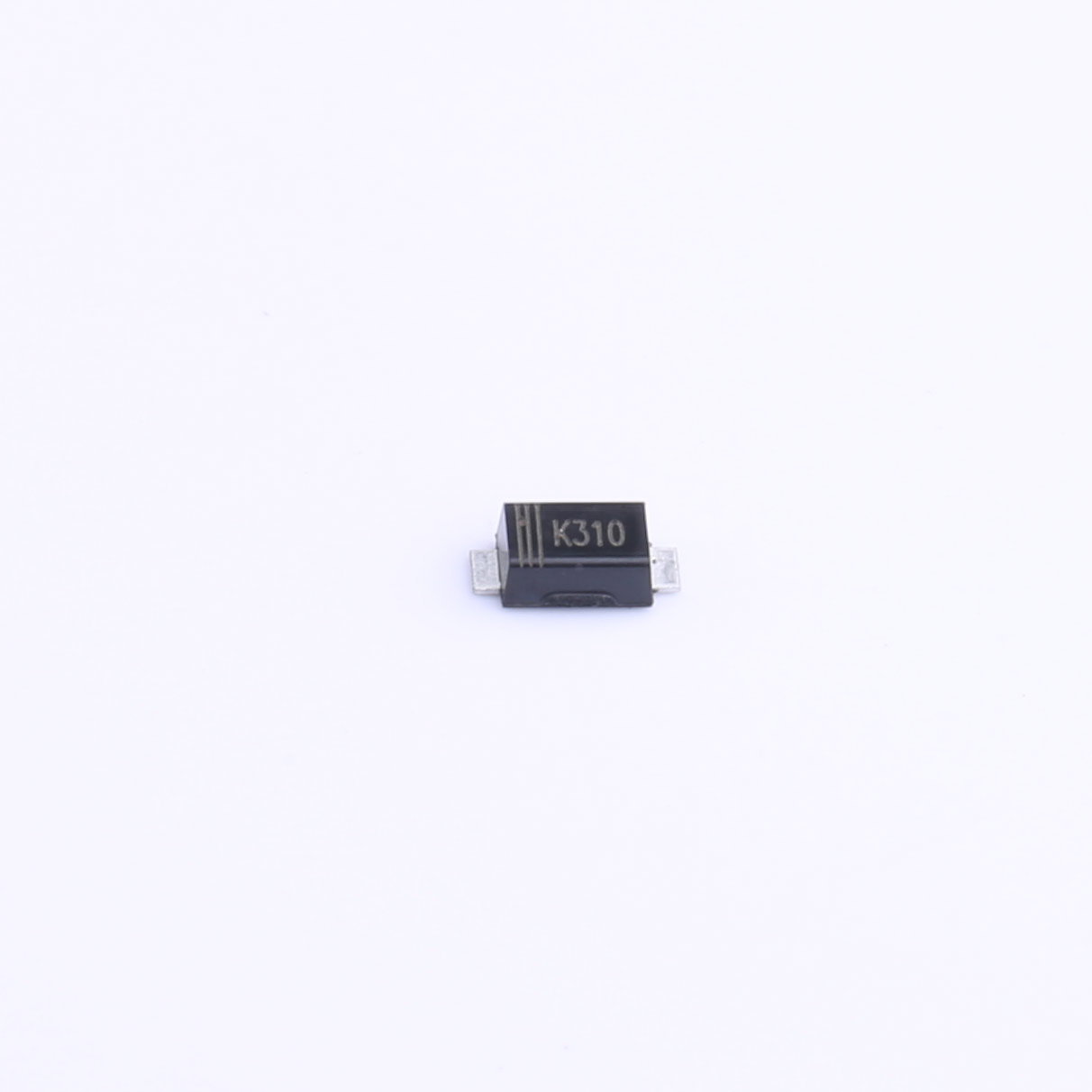

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.0007 ounce, 0.02 grams
