SMBJ24A Transient Voltage Diode DO-214AA SMBJ24A Transient Voltage Diode DO-214AA SMBJ24A Transient Voltage Diode DO-214AA

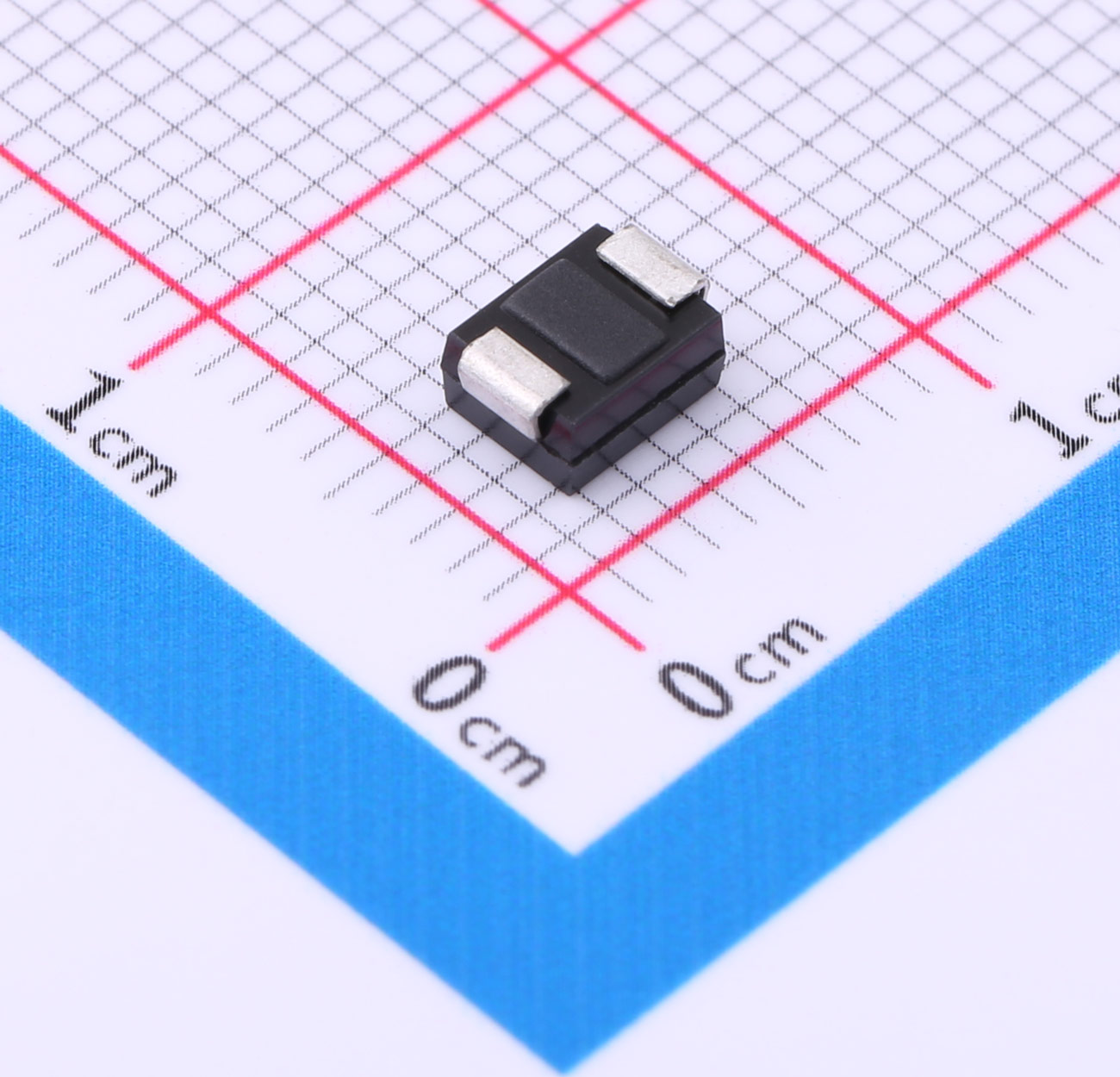

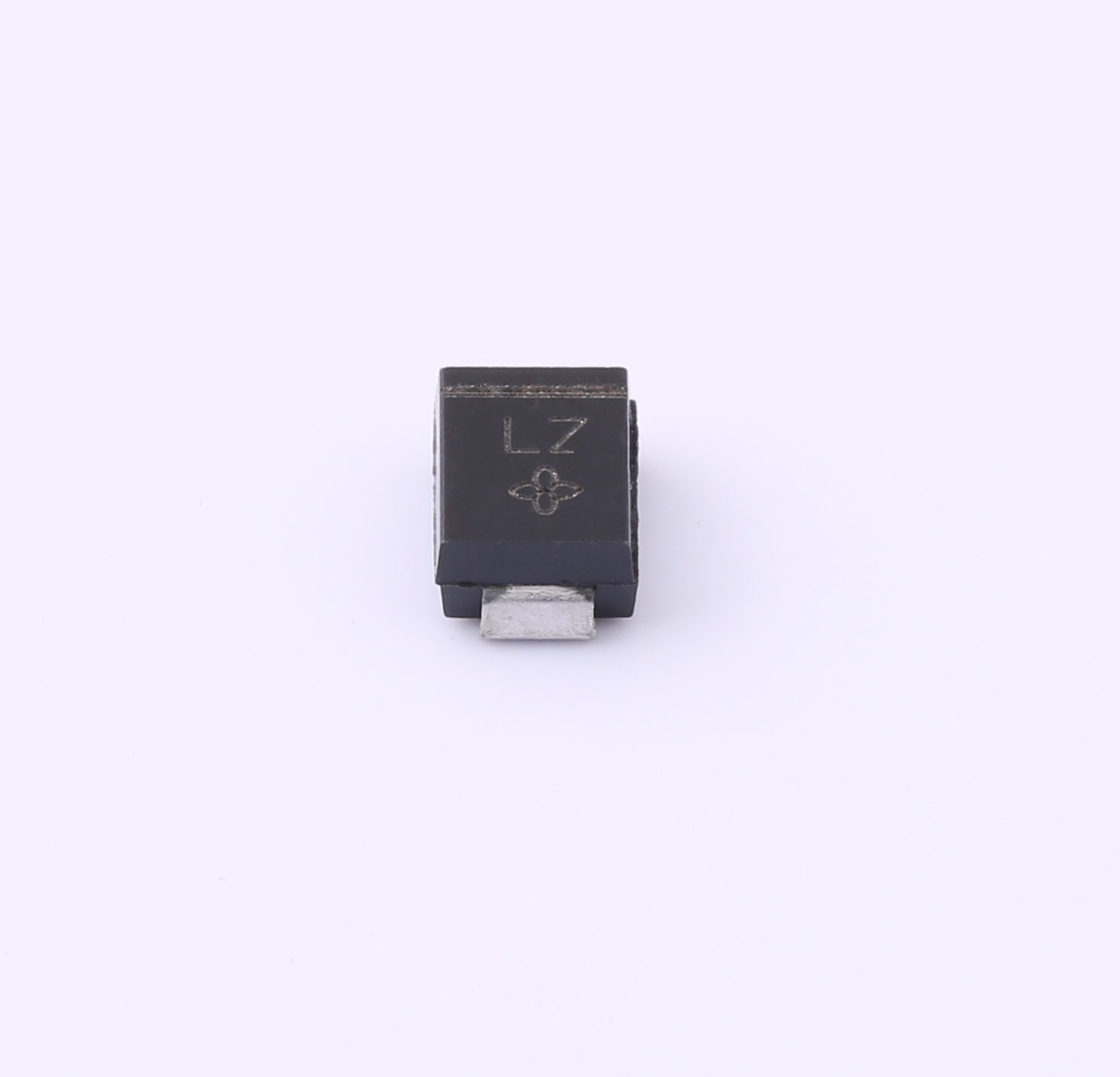

SMBJ24A Transient Voltage Diode DO-214AA

Polar: Unidirectional

Vrwm: 24V

VBR(min): 26.7V

VBR(max): 30.7V

Ir: 5μA

VC: 38.9V


Product Details

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR


FEATURES

  • Glass Passivated Die Construction

  • Uni-Directional and Bi-Directional Versions Available

  • Excellent Clamping Capability

  • Fast Response Time

  • Plastic Case Material has UL Flammability Classification Rating 94V-O


MECHANICAL DATA

  • Case: SMB/DO-214AA, Molded Plastic

  • Temminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

  • Polarity: Cathode Band or Cathode Notch

  • Marking: Type Number

  • Weight: 0.093 grams (approx.)
