Description
The Polar Bidirectional TVS Diode is a robust semiconductor device designed to protect sensitive electronic circuits from transient voltage spikes in both directions. With a VRWM (Working Peak Reverse Voltage) of 12V and VBR (Breakdown Voltage) ranging from 13.3V to 14.7V, this diode provides reliable protection against voltage surges, ensuring the longevity and reliability of electronic systems.

Features

● Glass Passivated Die Construction

● Uni- and Bi-Directional Versions Available

● Excellent Clamping Capability

● Fast Response Time

● Plastic Material: UL Flammability Classification Rating 94V-0

Mechanical Data

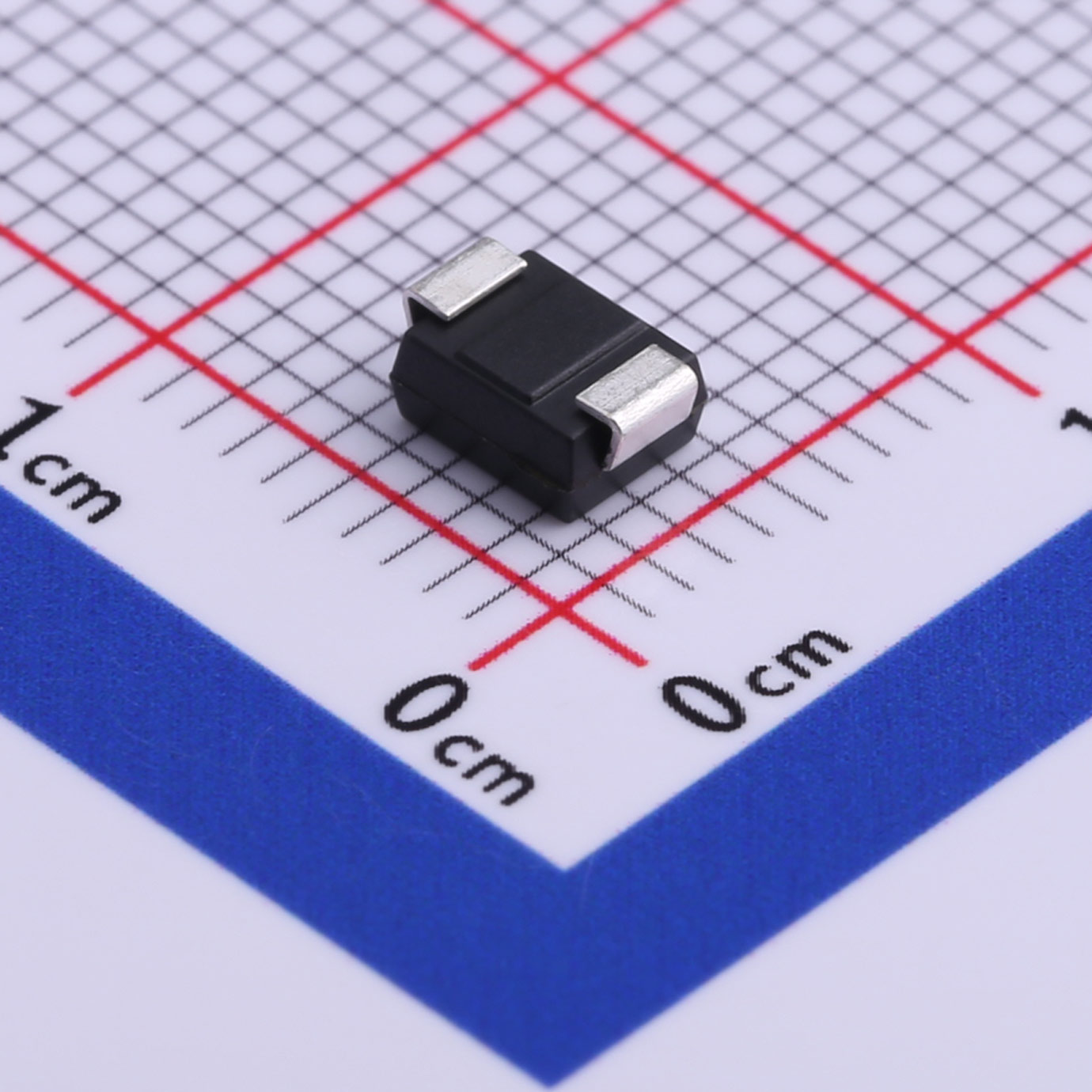

● Case: SMB/DO-214AA, Molded Plastic

● Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

● Polarity: Cathode Band or Cathode Notch

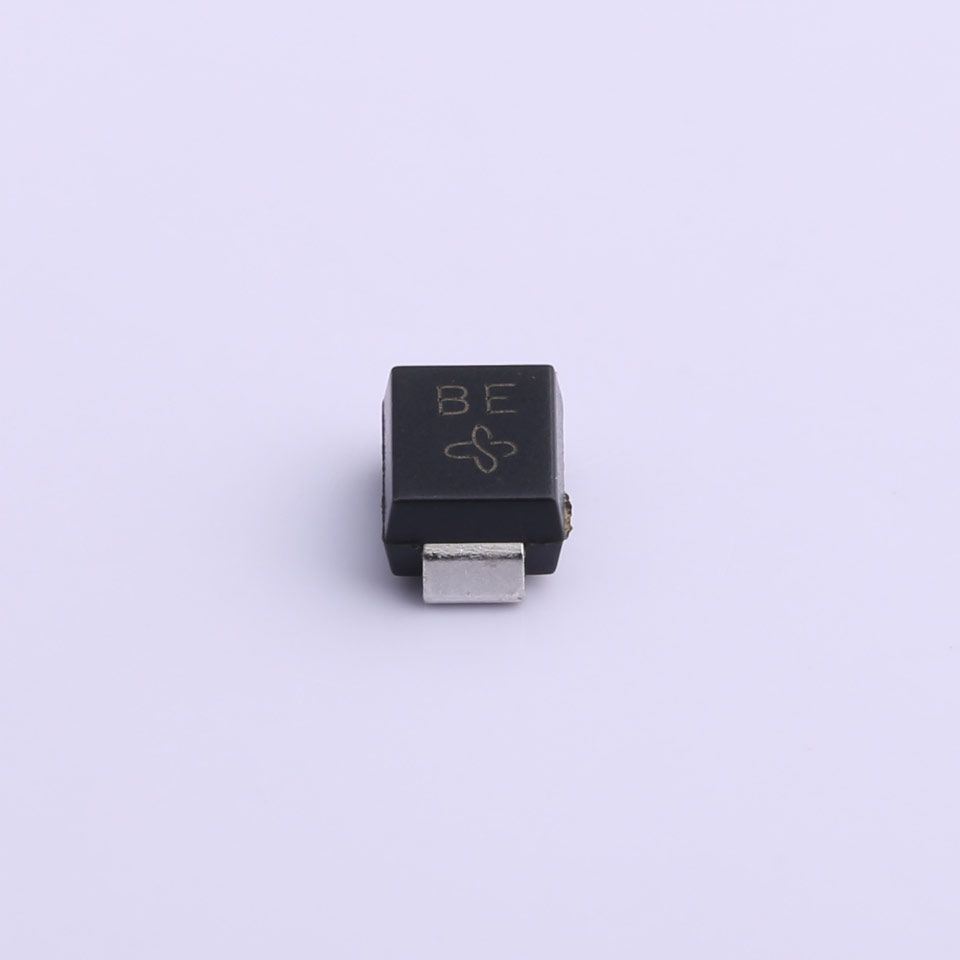

● Marking: Type Number

● Weight: 0.093 grams (approx.)

Applications

● Consumer Electronics
● Telecommunication Equipment
● Automotive Electronics
● Industrial Controls
● Power Supplies
