Description:

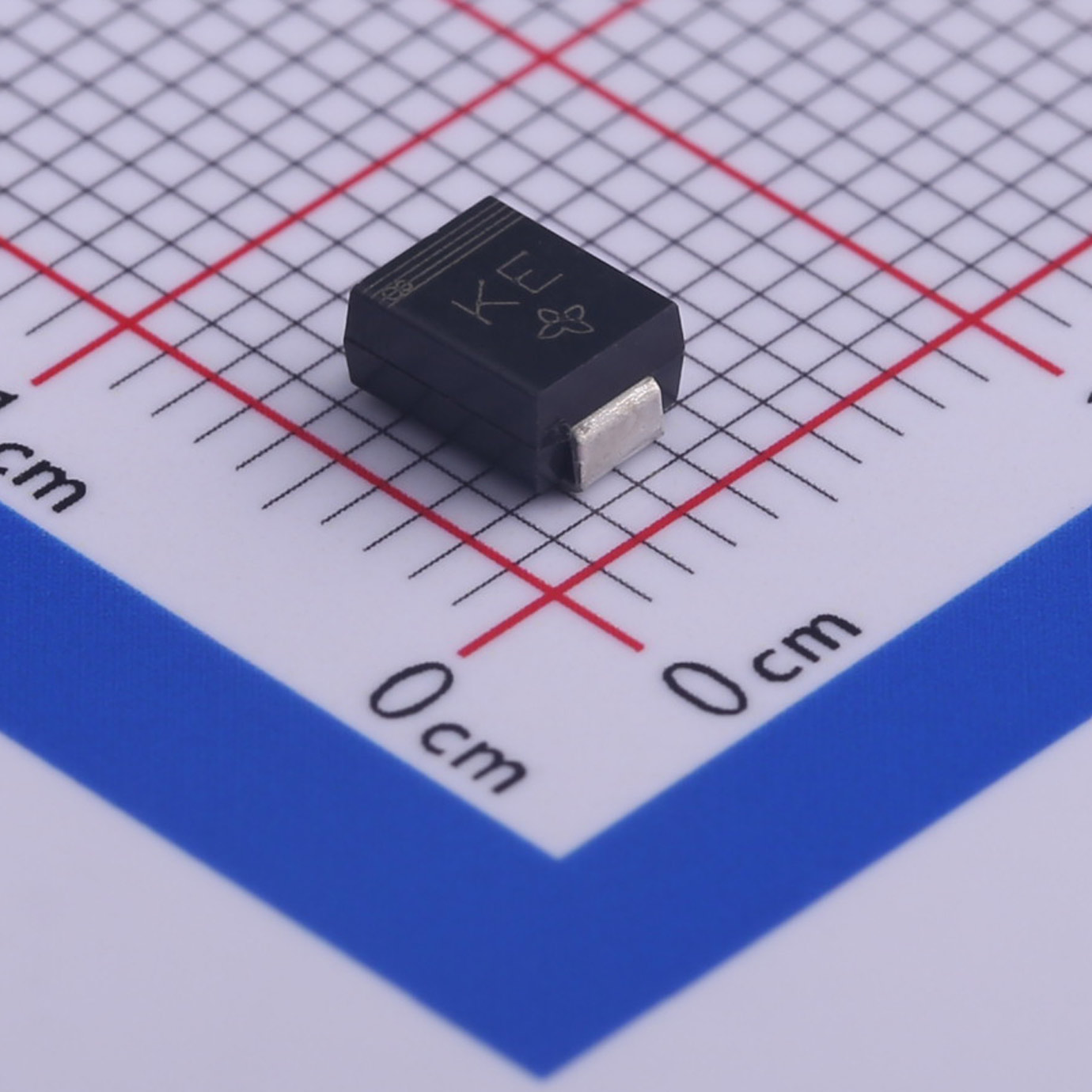

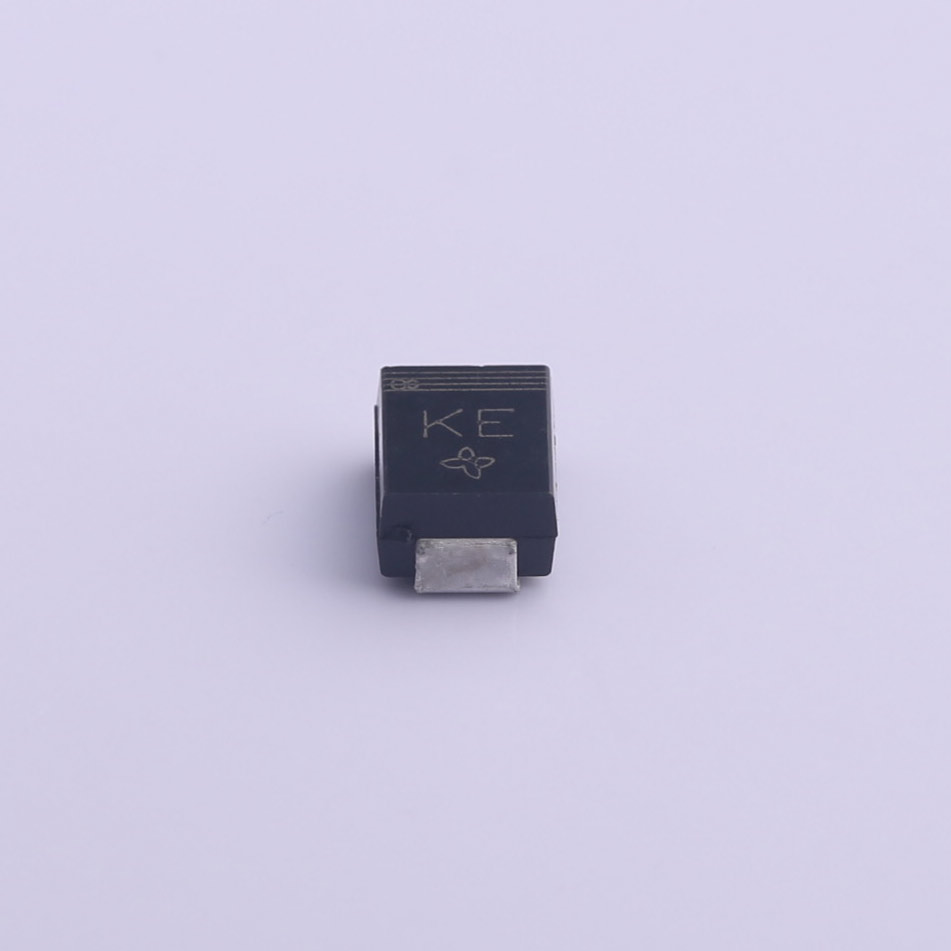

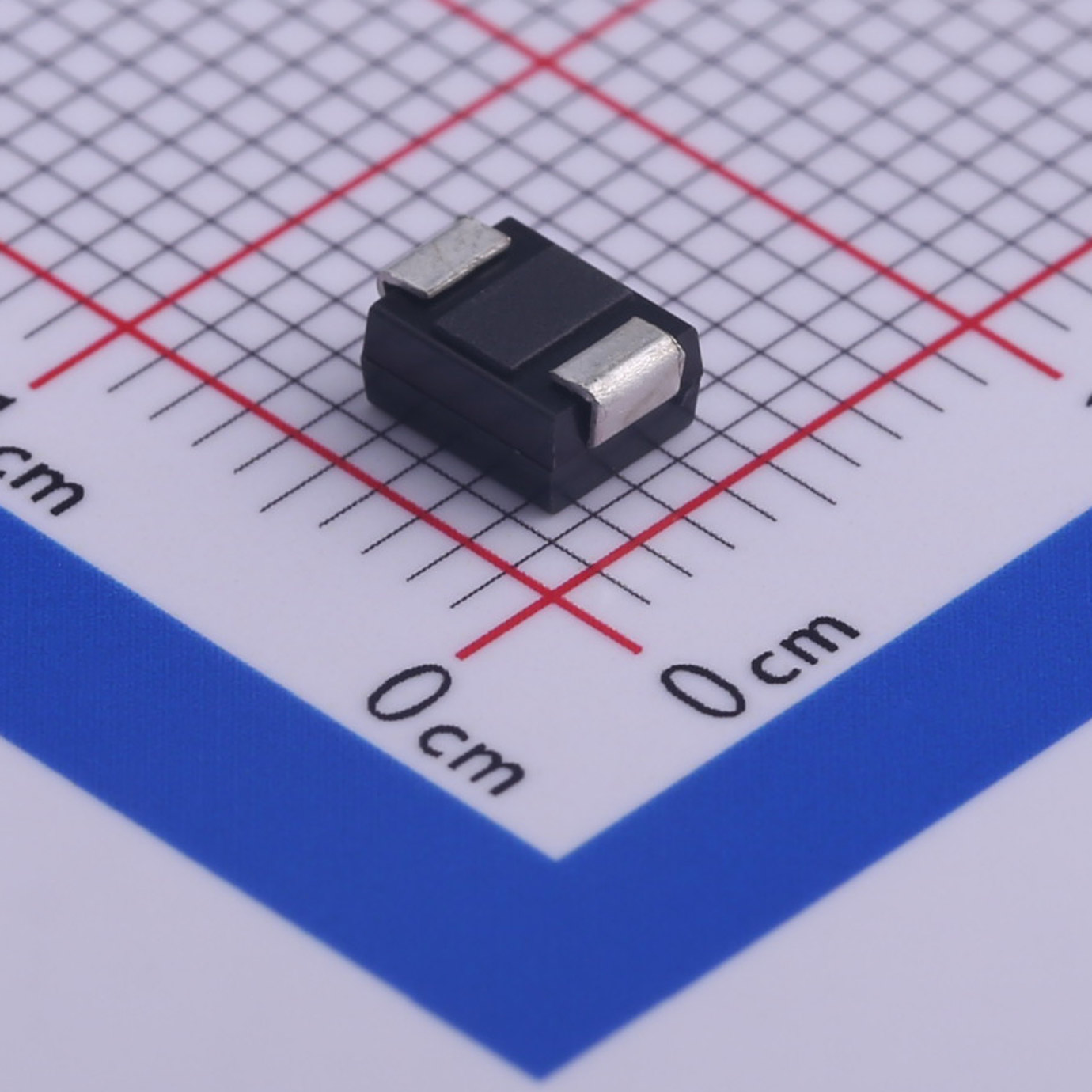

The Polar Unidirectional TVS (Transient Voltage Suppression) Diode is a specialized electronic component designed to protect sensitive circuits from transient voltage spikes. Encapsulated in an SMB package, this diode offers compact size without compromising on performance, making it suitable for various electronic applications.

Features

● UL Recognized File E-326243

● For surface mounted application

● Low profile package

● Built-in strain relief

● Glass passivated junction

● Excellent damping capability

● Fast response time:Typically less than 1.0ps from 0 volt to BV min

● Typical le less than 1uA above 10V

● High temperature soldering guaranteed: 260C 10 seconds at terminals

● Plastic material used camied Underwriters Laboratory Flammability Classification 94V-0

● 600 watts peak pulse power capability with a 10/1000 us waveform

Mechanical Data

● Case: Molded plastic

● Terminals: Pure tin plated,lead free

● Polarity: Indicated by cathode band except bipolar

Applications

● Consumer Electronics: Protects mobile devices, digital cameras, and portable electronics from voltage spikes caused by lightning or power surges.
● Computing Equipment: Safeguards microprocessors, memory modules, and sensitive components in computers and servers from transient voltage fluctuations.
● Telecommunication Systems: Essential for protecting telecom infrastructure such as routers, switches, and communication lines from voltage surges during lightning storms or power grid fluctuations.
● Automotive Electronics: Used in automotive applications to protect ECUs, infotainment systems, and onboard electronics from voltage transients during vehicle operation.
● Industrial Controls: Ensures reliable operation of PLCs, sensors, and automation equipment in industrial environments prone to electrical disturbances.
