S3M Surface Mount General Rectifier SMB S3M Surface Mount General Rectifier SMB S3M Surface Mount General Rectifier SMB

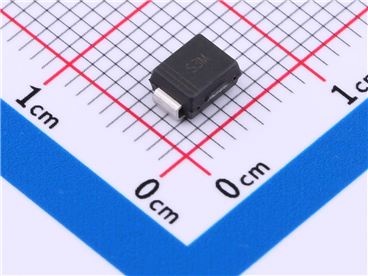

S3M Surface Mount General Rectifier SMB

Vr:1kV

Io:3A

Vf:1.15V@3A

Ir:10μA@1kV

Product Details

DURFACE MOUNT GENERA RECTIFIER

Our adventage

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description

The S3M is a high-performance general-purpose diode designed for efficient rectification and voltage regulation in electronic circuits. Featuring a maximum reverse voltage (Vr) of 1000V and a forward current (Io) rating of 3A, it is engineered to deliver reliable performance across various applications.


Features

● High Voltage Rating: The S3M diode is capable of withstanding a maximum reverse voltage (Vr) of 1000V, ensuring robust performance in applications requiring high voltage tolerance.

● High Current Capability: Rated for a forward current (Io) of 3A, the diode supports moderate to high current loads, making it suitable for power supply and signal processing applications.

● Low Forward Voltage Drop: With a forward voltage (Vf) of 1.15V at 3A, the diode minimizes power loss and heat generation during operation, optimizing energy efficiency.

● Low Leakage Current: The S3M diode maintains a low reverse leakage current (Ir) of 10μA at 1000V, enhancing reliability and stability in low-power and sensitive electronic circuits.


Applications

● Power Supplies: Used for rectification and voltage regulation in power supply units for industrial, consumer electronics, and automotive applications.

● Signal Diodes: Applied in signal processing circuits to manage and protect signals against reverse polarity and voltage spikes.

● Battery Chargers: Integrated into charging circuits to convert AC to DC efficiently and manage voltage levels.

● Industrial Equipment: Suitable for use in industrial control systems, automation equipment, and machinery requiring reliable and efficient power management.

S3M SMB_0.jpg
